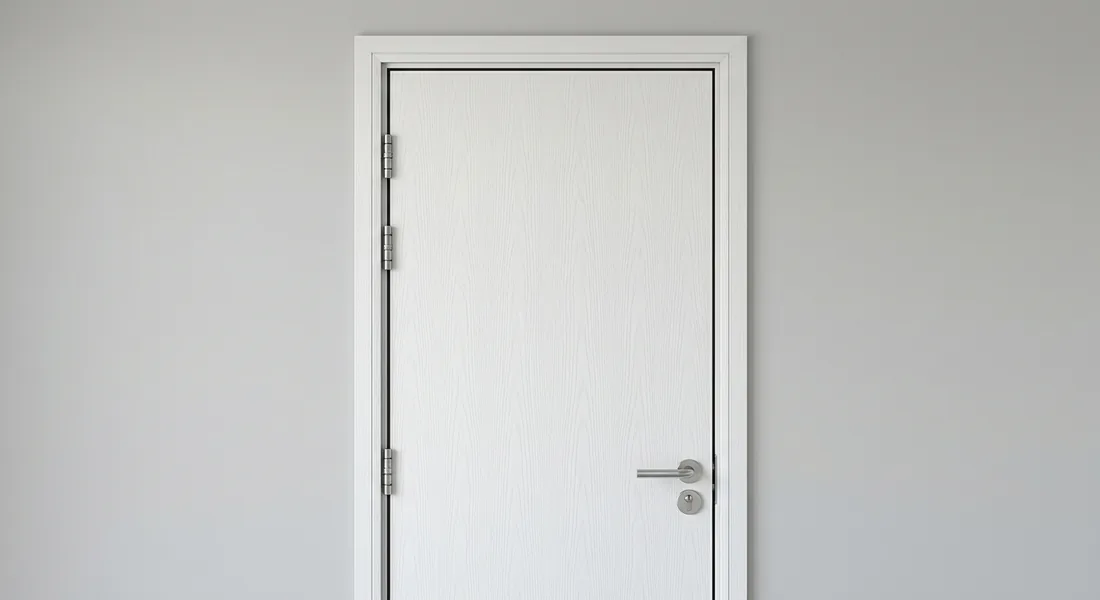

FD30 Composite Fire Door, shown in White

Shown in White · available in all thirteen colours

Composite doors

FD30 Composite Fire Door

A doorset rated to hold fire for 30 minutes, supplied with intumescent seals that expand in heat to close the gap around the leaf. Where a fire door is required, it is required as a complete set: the leaf, the frame, the hinges and the seals are tested together and cannot be mixed.

Pick this where building control or a managing agent has specified FD30. Ask us before ordering: the specification has to match what has been required of you.

A fire door is tested as a complete set — leaf, frame, hinges and intumescent seals together — and it only performs as the set it was tested as. Swapping the hinges or reusing an old frame voids the rating entirely.

Before ordering, check what has actually been required of you. FD30 and FD30S are not the same thing: the S adds smoke seals, and a managing agent or building control officer will have specified one or the other.

Priced on your measurements

Every door is made to the sizes you give us, so the price depends on the opening. Add it to your list and we will come back with a figure and a lead time.

View my list

Nothing is charged here and we take no card details. Your list comes to us as an enquiry and we reply with a price.

Specification

Door leaf
44mm, thermally insulated solid core
Outerframe
70mm multi-chamber reinforced uPVC, fully welded
Fire rating
FD30, 30 minutes
Seals
Intumescent, fitted to the frame
Cylinder
High security, anti-snap
Glazing
Reglazeable cassette system
Finish
Woodgrain effect, colour matched both sides
Compliance
Meets Part L of the Building Regulations
Guarantee
10 years on the door and profile
Sizes
Confirmed when we quote

We confirm the size range for this product when we quote, rather than publish a figure we have not verified.

Colours

Available in all thirteen core finishes, colour matched on both faces. Shown here in White. See the full range.
